OceanBase函数索引实战指南:从创建到优化,解决查询性能痛点(附实战命令)

“明明给字段建了索引,可带函数的查询还是走全表扫描,数据量大了直接卡到超时……”

如果你在使用 OceanBase 或 MySQL 时遇到过这种问题,大概率是没用到函数索引!当查询条件包含函数计算(比如LOWER(name)、MD5(customer_id))时,普通索引完全失效,而函数索引能直接基于计算结果建立索引,让查询效率飙升10倍+!

今天这篇干货,从定义、用法、避坑到实战场景,带你彻底掌握 OceanBase 函数索引的核心玩法~

1. 函数索引的定义

函数索引是基于表达式或函数计算结果创建的索引,而非直接基于列值。

  • 在MySQL 8.0.13开始支持函数索引,主要通过索引计算后的值来提高查询性能。

  • OceanBase 支持版本:V4.2.0 及以上;

参考文档:MySQL 8.0 参考手册

2. 函数索引的作用

  • 当查询条件包含函数时,普通索引无法使用,优化函数表达式查询;
  • 对函数计算结果建立索引可以避免全表扫描;
  • 对于包含计算的查询条件能显著提高效率;

2.1 函数索引的创建

ps:普通索引为 [索引名](列名),函数索引为 [索引名]((列名));两层括号后开始填写函数表达式;

创建函数索引时,会向主表添加一个隐藏的虚拟生成列,定义为函数索引的索引键,然后再将虚拟生成列的值存储到索引表中。

/* 建表时创建*/
CREATE TABLE tst_tb (col1 int, col2 int, [UNIQUE] {KEY / INDEX} [索引名]((用户函数(col1)));

/* 使用 create index 创建 */
CREATE [UNIQUE] INDEX tst_tb_func_idx2 ON tst_tb((col1+3));

/* 使用 alter table 创建 */
ALTER TABLE tst_tb ADD [UNIQUE] {INDEX | KEY} [索引名] ((用户函数(col1)));

2.2 函数索引的查询

/*
示例1:对名字的小写形式创建索引,使用与索引定义完全相同的表达式查询
*/
CREATE INDEX idx_lower_name ON tst_tb ((LOWER(name)));
SELECT * FROM employees WHERE LOWER(name) = 'John';

/*
示例2:对JSON字段的特定路径创建索引
从 JSON 文档中指定的路径返回数据
*/
CREATE INDEX idx_json_extract ON tst_tb ((JSON_EXTRACT(person, '$.weight')));
SELECT * FROM tst_tb WHERE JSON_EXTRACT(specs, '$.weight') > 10;

3.函数索引的使用限制

> 1. 非确定性的系统函数禁止被用于创建函数索引;

> 2. 子查询、参数、变量、存储过程、自定义函数 function 不允许在函数索引上使用;

> 3. 函数索引的表达式结果受限于字段长度;

> 4. 函数索引无法作为主键使用;

> 5. 空间索引和全文索引不能定义为函数索引;

> 6. 函数索引不允许在外键中使用;

> 7. 某字段用于函数索引,删列前必须删除该索引,否则报错;

/* 1. 使用非确定性函数*/
create index tst_01 on tst_tb((now()));
失败原因:ErrorCode = 3758, SQLState = HY000, Details = Expression of functional index contains a disallowed function.
/*在创建函数索引时,使用了不支持的函数,索引函数使用 SYSDATE 或用户环境*/
create index current_time_fun_idx on tst_tb((current_date()));
失败原因:ErrorCode = 3758, SQLState = HY000, Details = Expression of functional index contains a disallowed function.

/* 2.表达式过于复杂,函数索引中包括了子查询*/
CREATE INDEX tst_02 ON tst_tb ((SELECT MAX(id) FROM tst_tb));
失败原因:ErrorCode = 1064, SQLState = 42000, Details = You have an error in your SQL syntax; check the manual that corresponds to your OceanBase version for the right syntax to use near 'SELECT MAX(id) FROM tst_tb))' at line 1

/* 3.表达式结果太长,REPEAT 重复多次改字段字符串拼接*/
CREATE INDEX idx_invalid ON tst_tb ((REPEAT(customer_id, 100)));
失败原因:ErrorCode = 3757, SQLState = HY000, Details = Cannot create a functional index on an expression that returns a BLOB or TEXT. Please consider using CAST.
/* 在创建函数索引时,使用了返回 BLOB 或 TEXT 类型的表达式,而 BLOB 或 TEXT 类型的表达式不能用于创建函数索引 */

/* 4.函数索引无法作为主键创建*/
CREATE TABLE `tst_tb` (
  `id` bigint(20) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键id,自动增长',
  `customer_id` varchar(50) DEFAULT NULL COMMENT '客户ID',
  `create_time` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `update_time` datetime DEFAULT NULL ON UPDATE CURRENT_TIMESTAMP COMMENT '更新时间',
  `product` varchar(10) DEFAULT NULL COMMENT '产品类型',
  PRIMARY KEY `pri_cust` ((lower(md5(concat(upper(customer_id), 'oceanbase'))))),
  KEY `idx_create_time` (`create_time`) BLOCK_SIZE 16384 LOCAL,
  KEY `ob_idx_customer_id` (`customer_id`) BLOCK_SIZE 16384 LOCAL
);
失败原因:ErrorCode = 1064, SQLState = 42000, Details = You have an error in your SQL syntax; check the manual that corresponds to your OceanBase version for the right syntax to use near '(lower(md5(concat(upper(customer_id), 'oceanbase'))))), KEY `idx_create_time` ' at line 7

/* 5.空间索引和全文索引不能定义为函数索引*/
CREATE TABLE tbl_func (c1 int, c2 int, index tbl1_func_idx1 ((c1+1)), SPATIAL KEY ((c1+c2)));
失败原因:ErrorCode = 3760, SQLState = HY000, Details = Spatial functional index is not supported.
/* 不支持空间索引套用函数索引*/
CREATE TABLE tbl_func (c1 int, c2 varchar(20), index tbl1_func_idx1 ((c1+1)),  FULLTEXT INDEX full_idx_func ((SUBSTR(c2,1,2))) WITH PARSER ngram PARSER_PROPERTIES=(ngram_token_size=3));
失败原因:ErrorCode = 1235, SQLState = 0A000, Details = Fulltext index on generated column is not supported
/* 不支持全文索引套用函数索引*/

/* 6.函数索引不允许在外键中使用*/
CREATE TABLE products (
    product_id INT PRIMARY KEY,
    product_code VARCHAR(20) NOT NULL,
    product_name VARCHAR(100) NOT NULL,
    INDEX idx_lower_product_code ((LOWER(product_code)))
);


CREATE TABLE orders (
    order_id INT PRIMARY KEY,
    product_code_ref VARCHAR(20),
    CONSTRAINT fk_order_product FOREIGN KEY (product_code_ref) -- 创建外键引用函数索引
    REFERENCES products (LOWER(product_code))
);

失败原因:ErrorCode = 1064, SQLState = 42000, Details = You have an error in your SQL syntax; check the manual that corresponds to your OceanBase version for the right syntax to use near '(product_code)) )' at line 7

/* 7. 某字段用于函数索引,删列前必须删除该索引,否则报错*/
ALTER TABLE products DROP COLUMN product_code;
失败原因:ErrorCode = 3837, SQLState = HY000, Details = Column 'product_code' has a functional index dependency and cannot be dropped or renamed.

参考文档:

腾讯云:mysql函数索引_MySQL 函数索引 (Functional indexes)

函数索引支持的系统函数列表

函数索引不支持的系统函数列表

MySQL 函数索引测试分析

4. 无法创建函数索引的替代方案

/*表定义语句*/
CREATE TABLE `tst_tb` (
  `id` bigint(20) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键id,自动增长',
  `customer_id` varchar(50) DEFAULT NULL COMMENT '客户ID',
  `create_time` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `update_time` datetime DEFAULT NULL ON UPDATE CURRENT_TIMESTAMP COMMENT '更新时间',
  `product` varchar(10) DEFAULT NULL COMMENT '产品类型',
  `name` varchar(100) DEFAULT NULL,
  PRIMARY KEY (`id`),
  KEY `idx_create_time` (`create_time`) BLOCK_SIZE 16384 LOCAL,
  KEY `ob_idx_customer_id` (`customer_id`) BLOCK_SIZE 16384 LOCAL
);
explain extended select * from tst_tb where name='Product One';
=================================================
|ID|OPERATOR       |NAME  |EST.ROWS|EST.TIME(us)|
-------------------------------------------------
|0 |TABLE FULL SCAN|tst_tb|1       |3           |
=================================================
Outputs & filters:
-------------------------------------
  0 - output([tst_tb.id(0x7ff8f1823480)], [tst_tb.customer_id(0x7ff8f18238d0)], [tst_tb.create_time(0x7ff8f1823d20)], [tst_tb.update_time(0x7ff8f1824170)],
       [tst_tb.product(0x7ff8f18245c0)], [tst_tb.name(0x7ff8f1822d60)]), filter([tst_tb.name(0x7ff8f1822d60) = 'Product One'(0x7ff8f1822000)(0x7ff8f1822490)]), rowset=16
      access([tst_tb.id(0x7ff8f1823480)], [tst_tb.name(0x7ff8f1822d60)], [tst_tb.customer_id(0x7ff8f18238d0)], [tst_tb.create_time(0x7ff8f1823d20)], [tst_tb.update_time(0x7ff8f1824170)],
       [tst_tb.product(0x7ff8f18245c0)]), partitions(p0)
      is_index_back=false, is_global_index=false, filter_before_indexback[false],
      range_key([tst_tb.id(0x7ff8f1823480)]), range(MIN ; MAX)always true

/* 添加虚拟生成列 */
ALTER TABLE tst_tb ADD COLUMN lower_name VARCHAR(100)
GENERATED ALWAYS AS (LOWER(name)) STORED;

/* 在虚拟生成列上创建索引 */
CREATE INDEX idx_lower_name ON tst_tb (lower_name);

/* 执行计划 */
explain extended select * from tst_tb where lower_name='Product One';
==================================================================
|ID|OPERATOR        |NAME                  |EST.ROWS|EST.TIME(us)|
------------------------------------------------------------------
|0 |TABLE RANGE SCAN|tst_tb(idx_lower_name)|1       |8           |
==================================================================
Outputs & filters:
-------------------------------------
  0 - output([tst_tb.id(0x7ff8bd22d120)], [tst_tb.customer_id(0x7ff8bd22d570)], [tst_tb.create_time(0x7ff8bd22d9c0)], [tst_tb.update_time(0x7ff8bd22de10)],
       [tst_tb.product(0x7ff8bd22e260)], [tst_tb.name(0x7ff8bd223840)], [tst_tb.lower_name(0x7ff8bd221bc0)]), filter(nil), rowset=16
      access([tst_tb.id(0x7ff8bd22d120)], [tst_tb.name(0x7ff8bd223840)], [tst_tb.lower_name(0x7ff8bd221bc0)], [tst_tb.customer_id(0x7ff8bd22d570)], [tst_tb.create_time(0x7ff8bd22d9c0)],
       [tst_tb.update_time(0x7ff8bd22de10)], [tst_tb.product(0x7ff8bd22e260)]), partitions(p0)
      is_index_back=true, is_global_index=false,
      range_key([tst_tb.lower_name(0x7ff8bd221bc0)], [tst_tb.id(0x7ff8bd22d120)]), range(Product One,MIN ; Product One,MAX),
      range_cond([tst_tb.lower_name(0x7ff8bd221bc0) = 'Product One'(0x7ff8bd2eb070)(0x7ff8bd2ea650)])

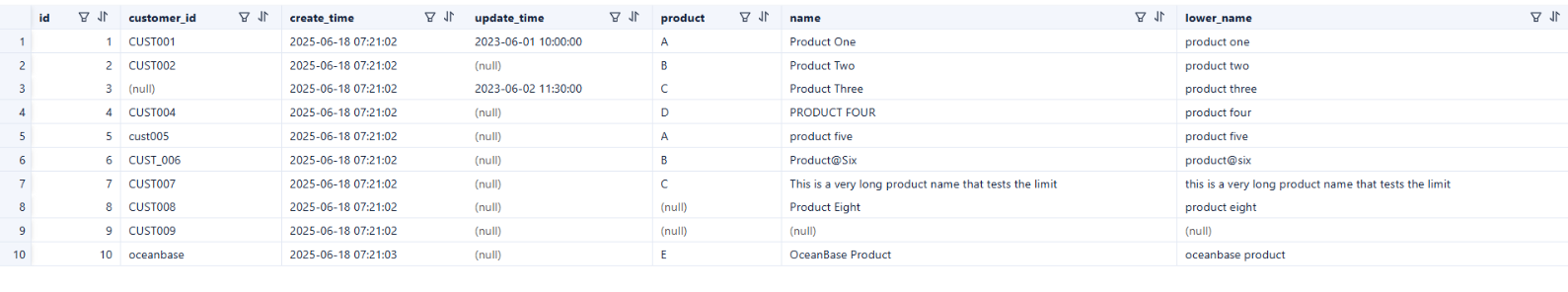

表数据

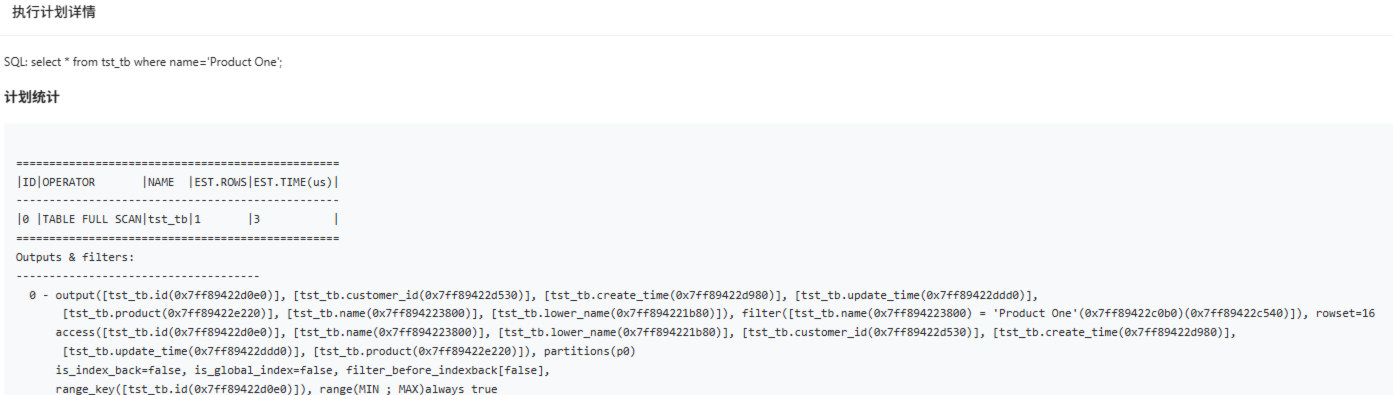

未走索引

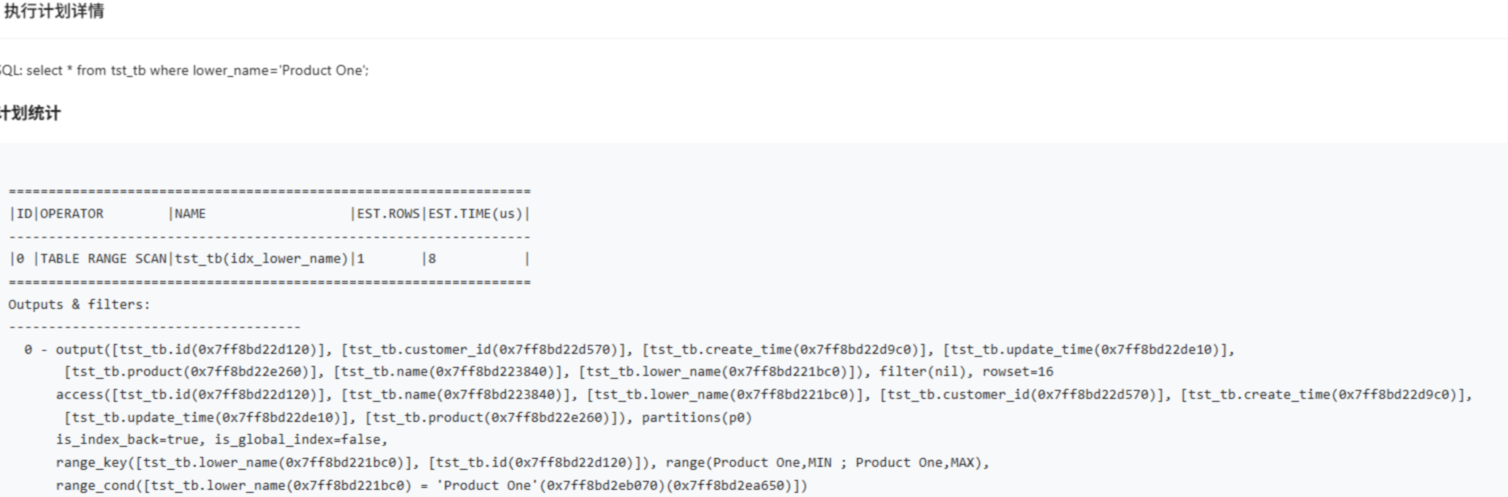

走索引

客户使用场景

场景一:给表字段添加函数索引进行优化

  • 场景描述:客户有两张表,A 表是在线热更数据的,B 表是离线异步更新的,其中 A表中的customer_id字段是应用程序加密过的字段值,B表中的customer_id字段是原始数据,客户将该两张表创建了联合查询的视图,为了保持一致,对 B 表的customer_id 字段做了 md5 加密,但查询视图的时候 B 表没有走索引;

  • 集群版本:OceanBase V4.2.1.10

/*
A 表结构
B 表与A表结构一致,且B表的数据是异步更新
*/
CREATE TABLE `tst_ta` (
  `id` bigint(20) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键id,自动增长',
  `customer_id` varchar(50) DEFAULT NULL COMMENT '客户ID',
  `create_time` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `update_time` datetime DEFAULT NULL ON UPDATE CURRENT_TIMESTAMP COMMENT '更新时间',
  `product` varchar(10) DEFAULT NULL COMMENT '产品类型',
  PRIMARY KEY (`id`, `create_time`),
  KEY `idx_create_time` (`create_time`) BLOCK_SIZE 16384 LOCAL,
  KEY `ob_idx_customer_id` (`customer_id`) BLOCK_SIZE 16384 LOCAL
);

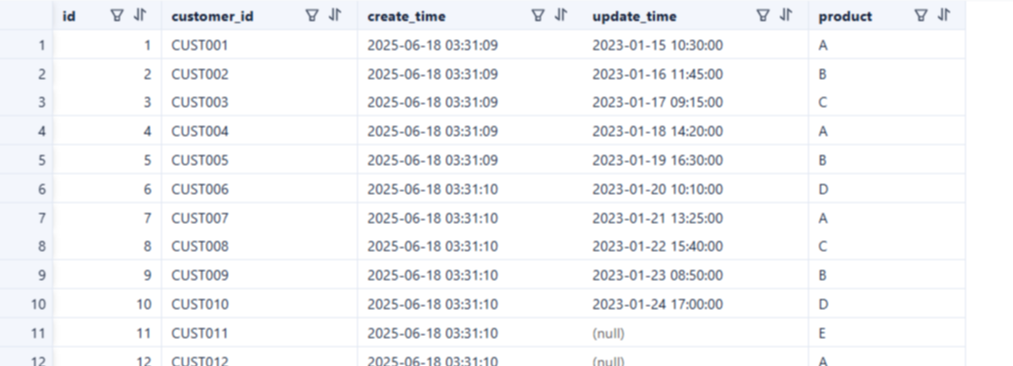

测试表模拟数据

INSERT INTO `tst_tb` (`customer_id`, `update_time`, `product`) VALUES ('CUST001', '2023-01-15 10:30:00', 'A');
INSERT INTO `tst_tb` (`customer_id`, `update_time`, `product`) VALUES ('CUST002', '2023-01-16 11:45:00', 'B');
INSERT INTO `tst_tb` (`customer_id`, `update_time`, `product`) VALUES ('CUST003', '2023-01-17 09:15:00', 'C');
INSERT INTO `tst_tb` (`customer_id`, `update_time`, `product`) VALUES ('CUST004', '2023-01-18 14:20:00', 'A');
INSERT INTO `tst_tb` (`customer_id`, `update_time`, `product`) VALUES ('CUST005', '2023-01-19 16:30:00', 'B');
INSERT INTO `tst_tb` (`customer_id`, `update_time`, `product`) VALUES ('CUST006', '2023-01-20 10:10:00', 'D');
INSERT INTO `tst_tb` (`customer_id`, `update_time`, `product`) VALUES ('CUST007', '2023-01-21 13:25:00', 'A');
INSERT INTO `tst_tb` (`customer_id`, `update_time`, `product`) VALUES ('CUST008', '2023-01-22 15:40:00', 'C');
INSERT INTO `tst_tb` (`customer_id`, `update_time`, `product`) VALUES ('CUST009', '2023-01-23 08:50:00', 'B');
INSERT INTO `tst_tb` (`customer_id`, `update_time`, `product`) VALUES ('CUST010', '2023-01-24 17:00:00', 'D');
INSERT INTO `tst_tb` (`customer_id`, `product`) VALUES ('CUST011', 'E');
INSERT INTO `tst_tb` (`customer_id`, `product`) VALUES ('CUST012', 'A');
INSERT INTO `tst_tb` (`customer_id`, `update_time`, `product`) VALUES ('CUST013', '2023-01-27 12:15:00', 'B');
INSERT INTO `tst_tb` (`customer_id`, `update_time`, `product`) VALUES ('CUST014', '2023-01-28 14:30:00', 'C');
INSERT INTO `tst_tb` (`customer_id`, `update_time`, `product`) VALUES ('CUST015', '2023-01-29 09:45:00', 'D');
INSERT INTO `tst_tb` (`customer_id`, `product`) VALUES ('CUST016', 'A');
INSERT INTO `tst_tb` (`customer_id`, `update_time`, `product`) VALUES ('CUST017', '2023-01-31 11:20:00', 'B');
INSERT INTO `tst_tb` (`customer_id`, `product`) VALUES ('CUST018', 'E');
INSERT INTO `tst_tb` (`customer_id`, `update_time`, `product`) VALUES ('CUST019', '2023-02-02 16:10:00', 'C');
INSERT INTO `tst_tb` (`customer_id`, `update_time`, `product`) VALUES ('CUST020', '2023-02-03 10:25:00', 'D');

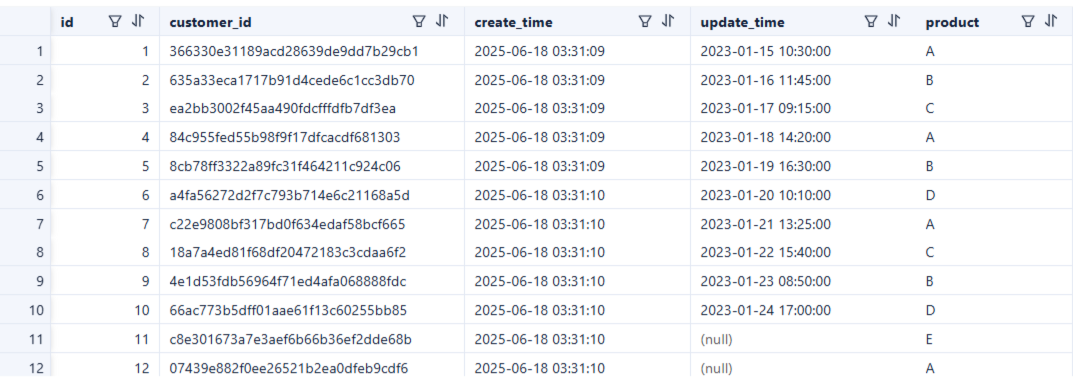

tst_ta.customer_id 加密后的表数据

tst_tb.customer_id 加密前的表数据

/*
将 customer_id 字段的值统一大写后与'oceanbase'拼接,然后经过 md5 算法加密后统一小写后记录
*/
CREATE VIEW `tst_view` AS
( select id,customer_id,create_time,update_time,product from tst_ta)
union all
(select id,
  lower(md5(concat(upper(customer_id), 'oceanbase'))) AS customer_id,
  create_time,update_time,product from tst_tb
);

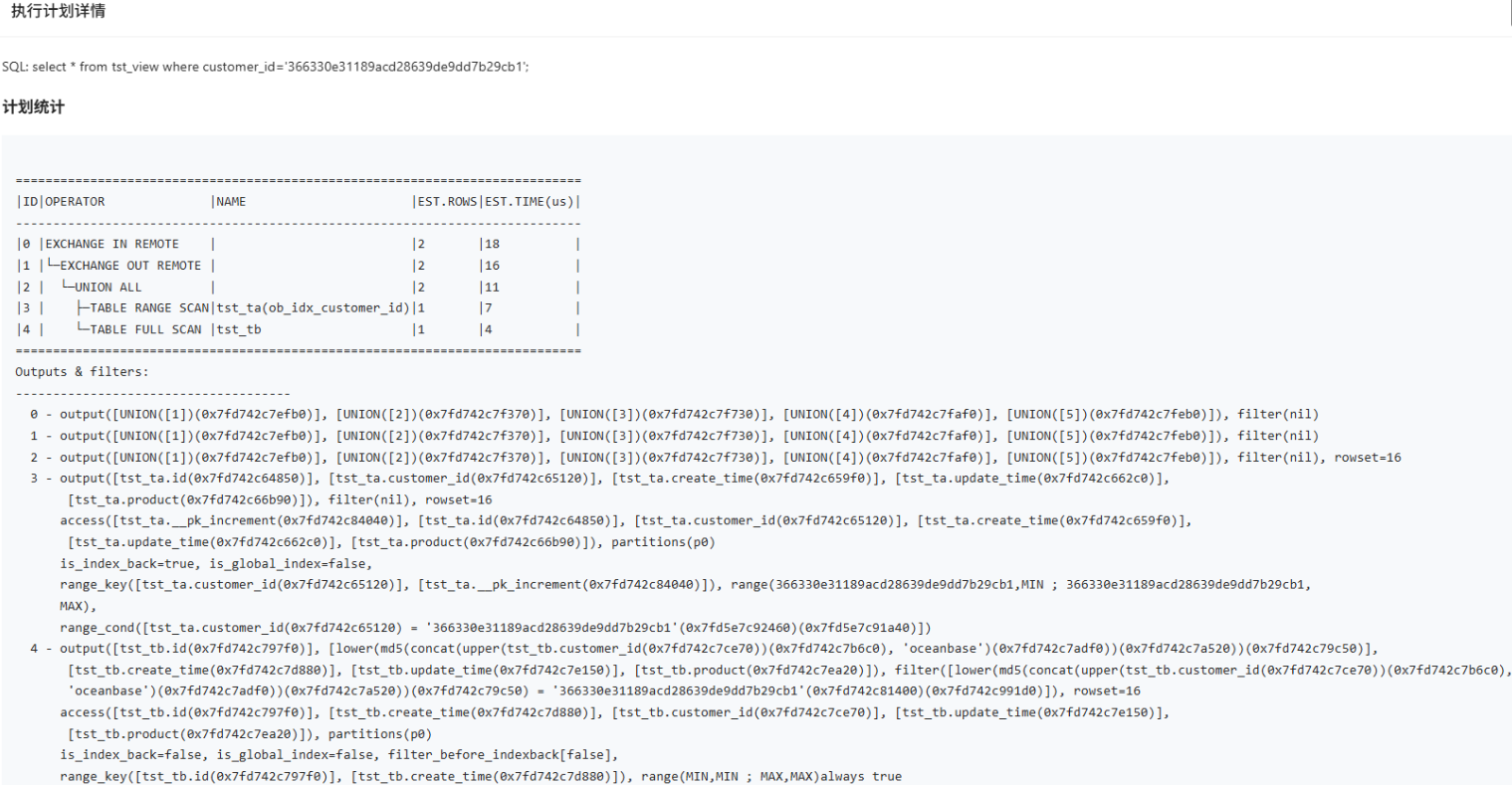

未走索引

/*
CREATE TABLE `tst_ta` (
  `id` bigint(20) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键id,自动增长',
  `customer_id` varchar(50) DEFAULT NULL COMMENT '客户ID',
  `create_time` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `update_time` datetime DEFAULT NULL ON UPDATE CURRENT_TIMESTAMP COMMENT '更新时间',
  `product` varchar(10) DEFAULT NULL COMMENT '产品类型',
  PRIMARY KEY (`id`, `create_time`),
  KEY `idx_create_time` (`create_time`) BLOCK_SIZE 16384 LOCAL,
  KEY `ob_idx_customer_id` (`customer_id`) BLOCK_SIZE 16384 LOCAL
);

*/
explain extended select * from tst_view where customer_id='366330e31189acd28639de9dd7b29cb1';
========================================================================
|ID|OPERATOR          |NAME                      |EST.ROWS|EST.TIME(us)|
------------------------------------------------------------------------
|0 |UNION ALL         |                          |2       |11          |
|1 |├─TABLE RANGE SCAN|tst_ta(ob_idx_customer_id)|1       |7           |
|2 |└─TABLE FULL SCAN |tst_tb                    |1       |4           |
========================================================================
Outputs & filters:
-------------------------------------
  0 - output([UNION([1])(0x7ff9ce07efa0)], [UNION([2])(0x7ff9ce07f360)], [UNION([3])(0x7ff9ce07f720)], [UNION([4])(0x7ff9ce07fae0)], [UNION([5])(0x7ff9ce07fea0)]), filter(nil), rowset=16
  1 - output([tst_ta.id(0x7ff9ce064850)], [tst_ta.customer_id(0x7ff9ce065120)], [tst_ta.create_time(0x7ff9ce0659f0)], [tst_ta.update_time(0x7ff9ce0662c0)],
       [tst_ta.product(0x7ff9ce066b90)]), filter(nil), rowset=16
      access([tst_ta.__pk_increment(0x7ff9ce084030)], [tst_ta.id(0x7ff9ce064850)], [tst_ta.customer_id(0x7ff9ce065120)], [tst_ta.create_time(0x7ff9ce0659f0)],
       [tst_ta.update_time(0x7ff9ce0662c0)], [tst_ta.product(0x7ff9ce066b90)]), partitions(p0)
      is_index_back=true, is_global_index=false,
      range_key([tst_ta.customer_id(0x7ff9ce065120)], [tst_ta.__pk_increment(0x7ff9ce084030)]), range(366330e31189acd28639de9dd7b29cb1,MIN ; 366330e31189acd28639de9dd7b29cb1,
      MAX),
      range_cond([tst_ta.customer_id(0x7ff9ce065120) = '366330e31189acd28639de9dd7b29cb1'(0x7ff8f0484a00)(0x7ff8f0483fe0)])
  2 - output([tst_tb.id(0x7ff9ce0797e0)], [lower(md5(concat(upper(tst_tb.customer_id(0x7ff9ce07ce60))(0x7ff9ce07b6b0), 'oceanbase')(0x7ff9ce07ade0))(0x7ff9ce07a510))(0x7ff9ce079c40)],
       [tst_tb.create_time(0x7ff9ce07d870)], [tst_tb.update_time(0x7ff9ce07e140)], [tst_tb.product(0x7ff9ce07ea10)]), filter([lower(md5(concat(upper(tst_tb.customer_id(0x7ff9ce07ce60))(0x7ff9ce07b6b0),
       'oceanbase')(0x7ff9ce07ade0))(0x7ff9ce07a510))(0x7ff9ce079c40) = '366330e31189acd28639de9dd7b29cb1'(0x7ff9ce0813f0)(0x7ff9ce0991d0)]), rowset=16
      access([tst_tb.id(0x7ff9ce0797e0)], [tst_tb.create_time(0x7ff9ce07d870)], [tst_tb.customer_id(0x7ff9ce07ce60)], [tst_tb.update_time(0x7ff9ce07e140)],
       [tst_tb.product(0x7ff9ce07ea10)]), partitions(p0)
      is_index_back=false, is_global_index=false, filter_before_indexback[false],
      range_key([tst_tb.id(0x7ff9ce0797e0)], [tst_tb.create_time(0x7ff9ce07d870)]), range(MIN,MIN ; MAX,MAX)always true

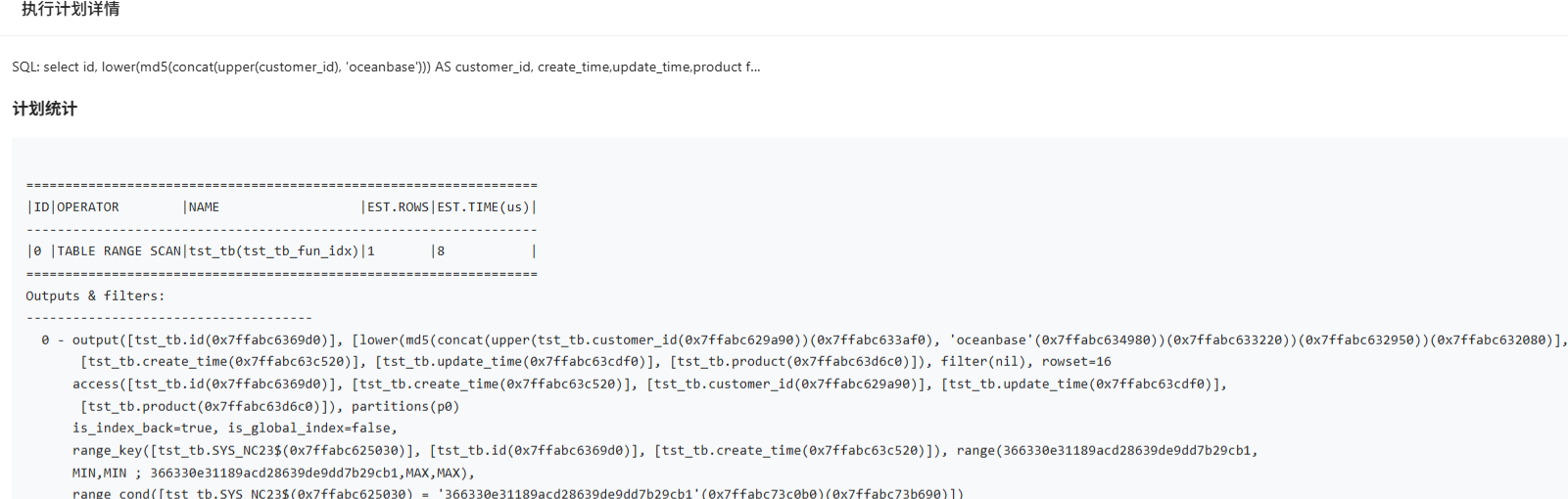

走索引

/*添加索引 1*/
create index tst_tb_fun_idx on tst_tb((lower(md5(concat(upper(customer_id), 'oceanbase')))));

/*
执行 select * from tst_view where customer_id='366330e31189acd28639de9dd7b29cb1';
相当于

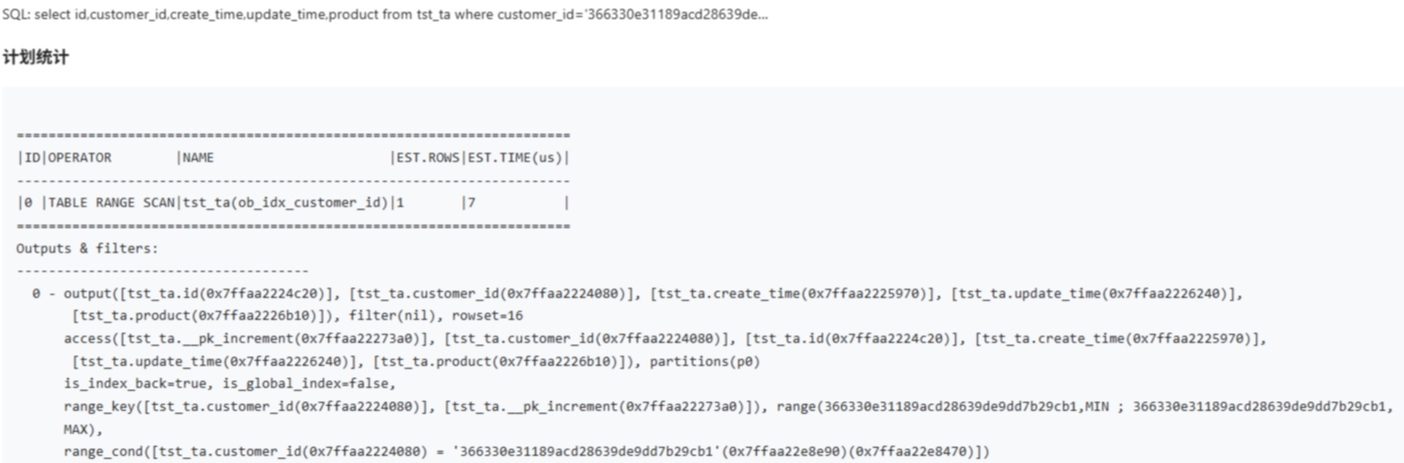

select id,customer_id,create_time,update_time,product from tst_ta where customer_id='366330e31189acd28639de9dd7b29cb1'
union all
select id,
  lower(md5(concat(upper(customer_id), 'oceanbase'))) AS customer_id,
  create_time,update_time,product from tst_tb where lower(md5(concat(upper(customer_id), 'oceanbase')))='366330e31189acd28639de9dd7b29cb1';

而不是 select * from tst_tb where customer_id='366330e31189acd28639de9dd7b29cb1';
*/

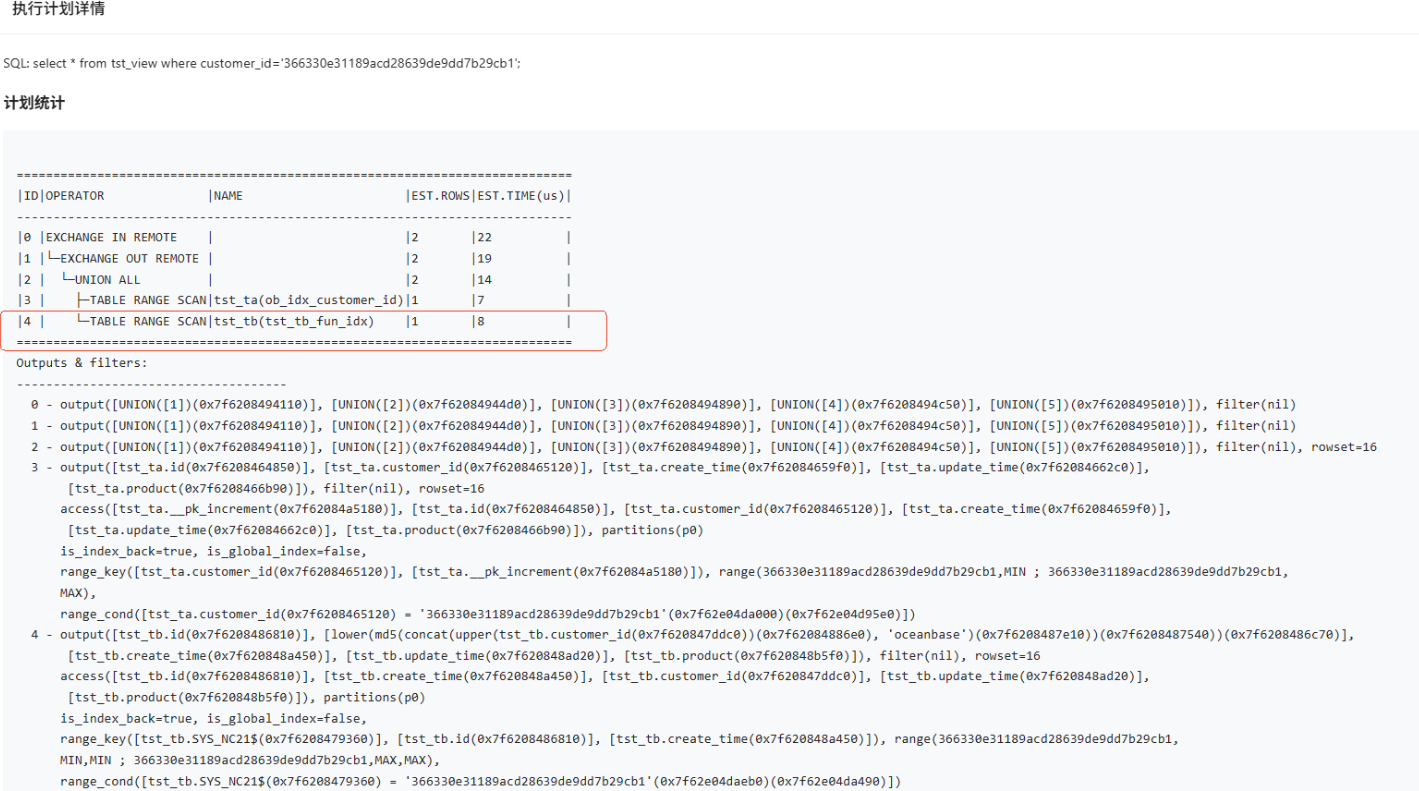

/* 执行计划 */
explain extended select * from tst_view where customer_id='366330e31189acd28639de9dd7b29cb1';
============================================================================
|ID|OPERATOR              |NAME                      |EST.ROWS|EST.TIME(us)|
----------------------------------------------------------------------------
|0 |EXCHANGE IN REMOTE    |                          |2       |22          |
|1 |└─EXCHANGE OUT REMOTE |                          |2       |19          |
|2 |  └─UNION ALL         |                          |2       |14          |
|3 |    ├─TABLE RANGE SCAN|tst_ta(ob_idx_customer_id)|1       |7           |
|4 |    └─TABLE RANGE SCAN|tst_tb(tst_tb_fun_idx)    |1       |8           |
============================================================================
Outputs & filters:
-------------------------------------
  0 - output([UNION([1])(0x7fd63d894110)], [UNION([2])(0x7fd63d8944d0)], [UNION([3])(0x7fd63d894890)], [UNION([4])(0x7fd63d894c50)], [UNION([5])(0x7fd63d895010)]), filter(nil)
  1 - output([UNION([1])(0x7fd63d894110)], [UNION([2])(0x7fd63d8944d0)], [UNION([3])(0x7fd63d894890)], [UNION([4])(0x7fd63d894c50)], [UNION([5])(0x7fd63d895010)]), filter(nil)
  2 - output([UNION([1])(0x7fd63d894110)], [UNION([2])(0x7fd63d8944d0)], [UNION([3])(0x7fd63d894890)], [UNION([4])(0x7fd63d894c50)], [UNION([5])(0x7fd63d895010)]), filter(nil), rowset=16
  3 - output([tst_ta.id(0x7fd63d864850)], [tst_ta.customer_id(0x7fd63d865120)], [tst_ta.create_time(0x7fd63d8659f0)], [tst_ta.update_time(0x7fd63d8662c0)],
       [tst_ta.product(0x7fd63d866b90)]), filter(nil), rowset=16
      access([tst_ta.__pk_increment(0x7fd63d8a5180)], [tst_ta.id(0x7fd63d864850)], [tst_ta.customer_id(0x7fd63d865120)], [tst_ta.create_time(0x7fd63d8659f0)],
       [tst_ta.update_time(0x7fd63d8662c0)], [tst_ta.product(0x7fd63d866b90)]), partitions(p0)
      is_index_back=true, is_global_index=false,
      range_key([tst_ta.customer_id(0x7fd63d865120)], [tst_ta.__pk_increment(0x7fd63d8a5180)]), range(366330e31189acd28639de9dd7b29cb1,MIN ; 366330e31189acd28639de9dd7b29cb1,
      MAX),
      range_cond([tst_ta.customer_id(0x7fd63d865120) = '366330e31189acd28639de9dd7b29cb1'(0x7fd76aeda000)(0x7fd76aed95e0)])
  4 - output([tst_tb.id(0x7fd63d886840)], [lower(md5(concat(upper(tst_tb.customer_id(0x7fd63d87ddf0))(0x7fd63d888710), 'oceanbase')(0x7fd63d887e40))(0x7fd63d887570))(0x7fd63d886ca0)],
       [tst_tb.create_time(0x7fd63d88a480)], [tst_tb.update_time(0x7fd63d88ad50)], [tst_tb.product(0x7fd63d88b620)]), filter(nil), rowset=16
      access([tst_tb.id(0x7fd63d886840)], [tst_tb.create_time(0x7fd63d88a480)], [tst_tb.customer_id(0x7fd63d87ddf0)], [tst_tb.update_time(0x7fd63d88ad50)],
       [tst_tb.product(0x7fd63d88b620)]), partitions(p0)
      is_index_back=true, is_global_index=false,
      range_key([tst_tb.SYS_NC21$(0x7fd63d879390)], [tst_tb.id(0x7fd63d886840)], [tst_tb.create_time(0x7fd63d88a480)]), range(366330e31189acd28639de9dd7b29cb1,
      MIN,MIN ; 366330e31189acd28639de9dd7b29cb1,MAX,MAX),
      range_cond([tst_tb.SYS_NC21$(0x7fd63d879390) = '366330e31189acd28639de9dd7b29cb1'(0x7fd76aedaeb0)(0x7fd76aeda490)])

tst_tb.customer_id='...'的执行计划

tst_tb.lower(md5(concat(upper(customer_id), 'oceanbase')))='...'的执行计划

以上就是 OceanBase 函数索引的核心内容, 如果你在操作中遇到问题,或是有独到的优化建议,欢迎在评论区留言分享,后续我们还会分享更多OceanBase / MySQL 性能优化秘籍,下次见~

精选推荐
